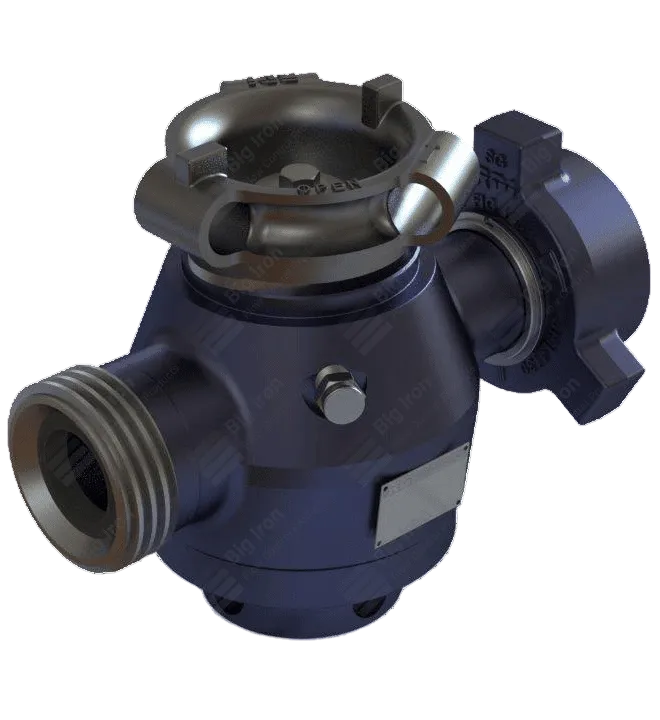

Plug Valve, Manual, LT, 2"x1" 1502 FxM, 15000 psi, STD Service
Plug Valve, Manual, LT, 2"x1" 1502 FxM, 15000 psi, STD Service is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
2in x 1in Fig 1502 Low Torque Plug Valve – 15,000 psi Standard Service
Product Overview
The 2in x 1in Fig 1502 Lo Torc Plug Valve is engineered for high-pressure oilfield applications where reduced operating torque, dependable sealing performance, and compact flow control are critical. Designed for 15,000 psi standard service, this valve combines forged alloy steel construction with an integral low torque design to improve operability while maintaining durability in demanding field conditions.
The reducing outlet configuration makes this valve ideal for manifold systems, choke applications, pressure control equipment, and treating iron assemblies where space constraints or flow transitions require a reduced bore connection.
Key Features
- 15,000 psi working pressure
- Standard service configuration
- Integral low torque design
- 2in x 1in Fig 1502 hammer union MxF connections
- Forged alloy steel pressure-containing components
- Reduced operating torque for easier actuation
- Compact field-proven body geometry
- Serviceable internal components
- Heavy-duty ductile iron handle assembly
- Designed for high-cycle pressure pumping operations
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Low Torque Plug Valve |
| Size | 2in x 1in |
| Figure | Fig 1502 |
| End Connections | Male x Female Hammer Union |
| Working Pressure | 15,000 psi |
| Service | Standard Service |
| Valve Design | Integral Low Torque |
| Approximate Weight | 52 lbs |
| Overall Length | 10.60 in |
| Overall Height | 9.86 in |
| Bore Size | 1.06 in |
Construction & Materials
Forged alloy steel low torque construction with 4130/4140 pressure-containing components, ductile iron seat carriers, NBR sealing elements, and serviceable internal components. Designed with an integral low torque operating system and Fig 1502 hammer union connection hardware for reliable high-pressure standard service operation and easier valve actuation in demanding field conditions.
Applications
- Hydraulic fracturing
- Pressure pumping
- Cementing
- Flowback operations
- Choke and manifold systems
- Temporary treating iron systems
- Production testing
- Rental iron fleets
- Drilling and well intervention support
Product Benefits
- Lower operating torque compared to conventional plug valves
- Easier operation during high-pressure service
- Reduced operator fatigue
- Compact reducing configuration for flexible system integration
- Durable forged body construction
- Reliable sealing performance
- Field serviceable design for reduced downtime
- Compatible with standard Fig 1502 iron systems
-
Data Sheet-
-
Weight-
